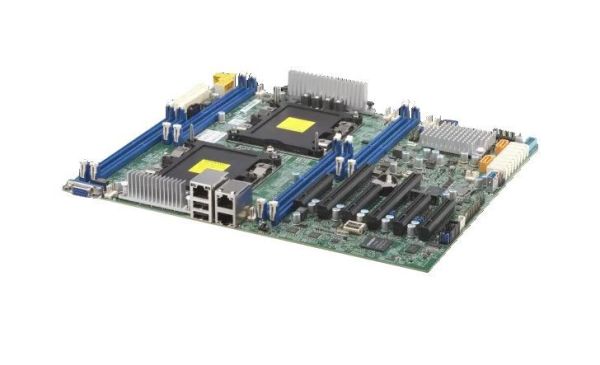

Supermicro X11DPL-I Dual Socket LGA3647 ATX Server Motherboard

The Supermicro X11DPL-I is a full-featured ATX server motherboard built around the Intel C621 chipset. It supports dual 2nd-Gen Intel Xeon Scalable processors (LGA-3647), each up to 140W TDP, linked via dual UPI at 10.4 GT/s. With eight DDR4 3DS ECC RDIMM or LRDIMM slots, it supports up to 2TB of memory at DDR4-2933 MT/s. Storage includes ten SATA3 (6Gb/s) ports with RAID 0/1/5/10, plus one M.2 Key-M slot (2260/2280 form factor) for NVMe/SATA devices. I/O includes dual Gigabit LAN, VGA, and extensive PCIe 3.0 expansion slots for high-bandwidth add-ons. Ideal for virtualization, storage, or compute intensive workloads.

Key Features

• CPU Support: Dual LGA-3647 sockets for 1st or 2nd Gen Intel Xeon Scalable CPUs, up to 140 W each.
• Memory Capacity: 8 DIMM slots supporting up to 2TB with 3DS ECC RDIMM or LRDIMM at DDR4-2933 MT/s.
• Expansion Slots: 2 × PCIe 3.0 x16, 3 × PCIe 3.0 x8, 1 × PCIe 3.0 (wired as x4), plus M.2 Key-M interface.
• Storage & RAID: Ten SATA-III ports (6 Gb/s) via the C621 controller, with RAID levels 0,1,5,10 supported.
• I/O & Networking: Dual Gigabit Ethernet ports (Intel X722 + Marvell 88E1512), VGA output, serial header, SuperDOM ports.

The X11DPL-I delivers massive compute, high memory capacity, and versatile storage expansion, all in a standard ATX server board ideal for enterprise and data center workloads. Available through IT Hardware Outlet, pairing Supermicro engineering with our expert support.
